Product Detail

*Usually ships within 7 to 14 days.

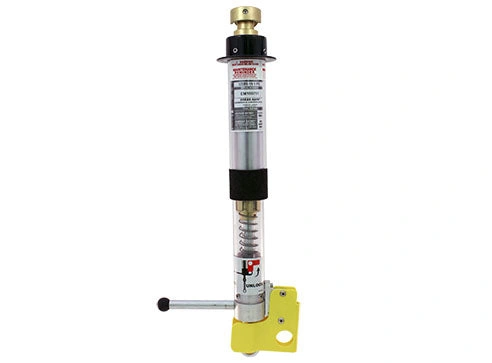

The BREAK-SAFE® Load Break & Pick-up Tool is a jumper clamp that functions like a portable switch. It is designed to operate on overhead distribution lines in conjunction with a mechanical jumper.

The BREAK-SAFE® is a jumper clamp that functions like a portable switch. It is designed to operate on overhead distribution lines in conjunction with a mechanical jumper. The BREAK-SAFE® has three operating functions: LOAD BREAKLOAD PICKUP CONTINUOUS CURRENT DUTY. The BREAK-SAFE® is available in four models with either a Floating Head or a Duckbill Head:15 kV / 300 amp27 kV / 300 amp38 kV / 300 amp46 kV / 200 amp MINIMUM SAFE DISTANCE. In order to keep personnel at a safe distance, the BREAK-SAFE® is operated with an insulated fiberglass hot stick for load break and load pick-up functions. The Yellow Safety Lock is also operated by a hot stick and helps prevent the tool from an unintended load break or pickup operation.

 *LOAD BREAK, LOAD PICKUP and CONTINUOUS CURRENT DUTY

 *LOAD BREAK, LOAD PICKUP and CONTINUOUS CURRENT DUTY

Catalog Page
