Orders for KIT126-24 / KIT126Q1-23 received by 12:00/Noon EST ship same business day. After 12:00/Noon EST ship next business day. Other variants ship in 7-14 business days.
The Buckingham Economy Linemen Kit was designed for the linemen who may only be on a pole for a couple of hours per day versus traditional linemen who would spend most of the day on the poles. This kit features all the basic fall protection products a climber will need while working on a pole.

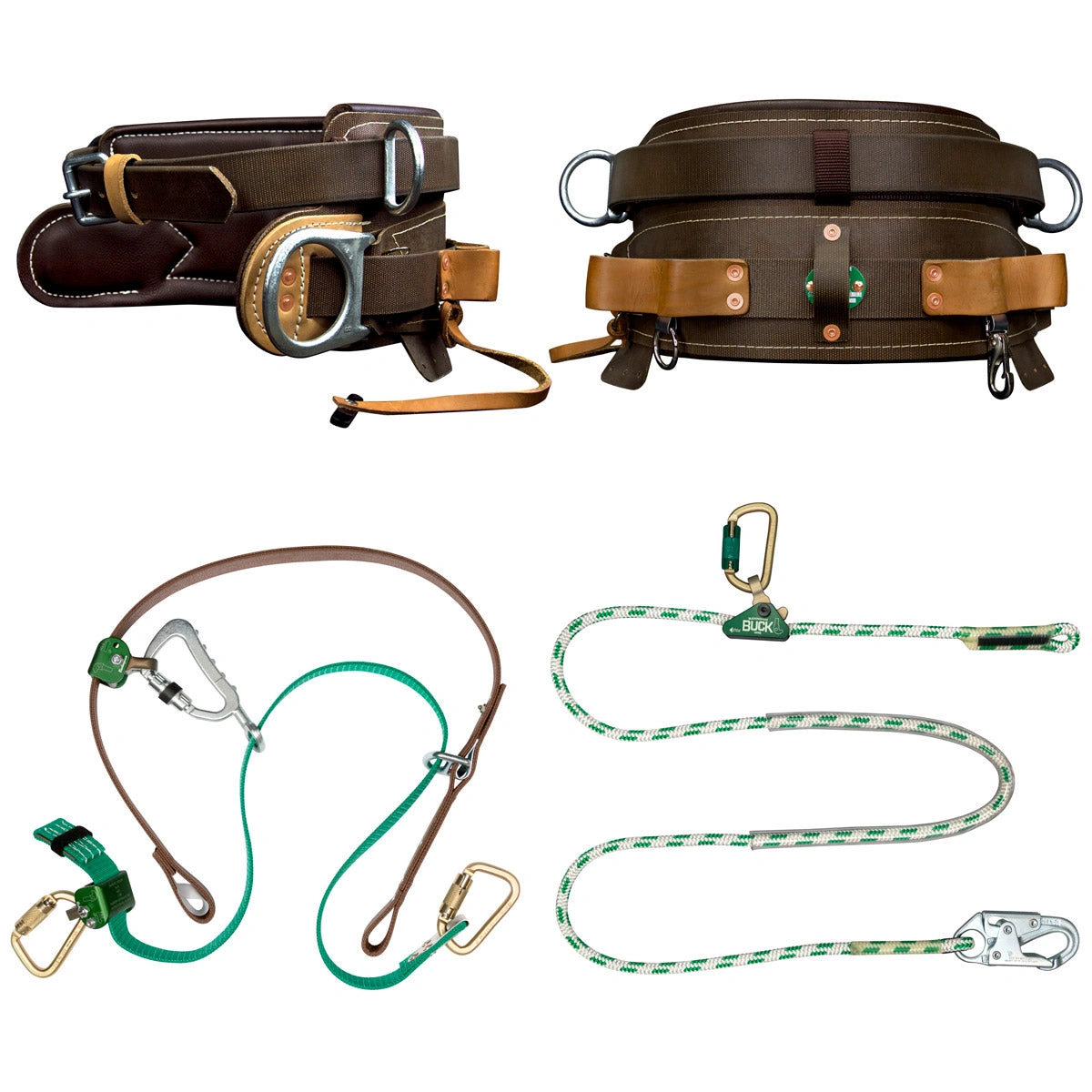

Kit Features:
- Buck Mobility Belt (190224)
- SuperSqueeze™ (488W2)
- BuckAdjuster™ (9-8)
Economy 4 D-Ring Body Belt (SKU: 190224) – A 4 D-Ring Body belt (patented) made from quality leathers with a 6-ply neoprene impregnated nylon 1 3/4″ waist strap. The extra D-Rings make this ideal with the use of a secondary lanyard.
BuckAdjuster™ (SKU: 9-8) - A fully adjustable positioning lanyard (APL) that features the patent-pending BuckGrab™ and a 90-degree twist in the eye of the cam for use with a line workers body belt.
SuperSqueeze™ (SKU: 488W2) - w/ Woven Inner Strap for Distribution - The SuperSqueeze™ offers superb Wood Pole Fall Restriction and with numerous configurations, the SuperSqueeze™ fits many climbing styles and needs. Offers an easy one-handed outer strap adjustment by incorporating Buckingham’s WebGrab™ which allows adjustment with just a flick of the wrist.
OPTIONAL Steel Pole GRiP™ Climber Kit with ‘C’ Pads (SKU: SBG94K5G1) - A popular choice steel pole climber that has a contoured shank and an offset stirrup. Now features Buckingham’s patented GRiP™ technology that keeps the gaff pointed toward the heart of the pole, which reduces cutouts and maximizes comfort.
Product Specifications:
| KIT 126 |
| Product Number: | 190224 |
| Product Name: | Economy 4 D-Ring Body Belt |
| Buckle Type: | Tongue Buckle |
| Buckle Material: | Steel |
| Number of D-Rings: | 4 |
| Dee Ring Material: | Steel |
| Belt Strap Material: | Nylon |
| Back Pad Material: | Leather |
| Accessory Loops: | No |
| Tape Thong: | Yes |
| Removable Belt Strap: | No |
| Floating Suspension Ring: | No |
| Full Floating D-Rings: | No |
| Tool Loops: | Yes |
| Pouch Tabs: | Yes |
| Back Pad Width: | 7.75' |
| Belt Strap Width: | 1.75' |
| Thread / Stitching: | Nylon |
| Product Type: | Work Positioning |
| User Weight Capacity: | 350 lbs |
| Weight: | 6.6 lbs |
| Standards: | Applicable OSHA & ASTM F887. |
| | |
| Product Number: | 488W2 |
| Product Name: | SUPERSQUEEZE™ |
| Body Belt Connector Type: | Carabiners |
| Body Belt Connector Material: | Steel |
| Inner Strap Length: | 48' |
| Inner Strap Material: | Woven Strap |
| Inner Adjustment Type: | Aluminum WebGrab |
| Outer Strap Length: | 34.5' |
| Outer Strap Material: | Neoprene Impregnated Nylon |
| Outer Strap Adjustment Type: | Aluminum WebGrab |
| Buckhorn: | No |
| Pole Size: | Up to a Class 1 65 Pole / 50' Circumference |
| Weight: | 4.85 lbs |
| User Weight Capacity: | 350 lbs |
| Standards: | ASTM F887 |
| | |
| Product Number: | 9-8 |
| Product Name: | BuckAdjuster™ |
| Overall Length: | 8 |
| Number of Legs: | 1 |
| Connector Type: | Locking Snaphooks |
| Connector Material: | Steel |
| Material Type: | Rope |
| Adjustable?: | Yes |
| Adjustment Type: | RopeGrab with Carabiner |
| Protector?: | Yes |
| Protector Type: | Clear Tube |
| Red Wear Center?: | Yes |
| Weight: | 2.5 lbs. |
| User Weight Capacity: | 350 lbs. When Fully Equipped |
| Product Type: | Work Positioning |
| Standards: | ASTM F887, OSHA 1926.959, CA. OSHA 2940.6, CSA Z259.11 |
| Product Number: | SBG94K5G1 |
| Product Name: | Steel Pole GRiP™ Climber Kit With C Pads |
| Material: | Steel |
| Gaff Type: | Pole |
| Gaff Material: | Steel |
| Gaff Attachment Type: | Screw & Dowel |
| Gaff Angle: | 16 Degrees |
| Gaff Guard: | Yes: Model No. 6909A |
| Foot Straps: | Yes: Model No. 21391 |
| Leg Straps: | Yes: Model No. 2639 |
| Climber Pads: | Yes – Model No: 35032 |
| GRiP: | Yes |
| Shank Type: | Contoured |
| Stirrup Type: | Offset |
| Stirrup Width: | Standard- 4 1/2″ |
| Sleeve Length: | Standard |
| User Weight Capacity: | 350 lbs |
| Weight: | 3.5 lbs. |
| Standards: | ASTM F887 |
Instructions & Warnings:
SuperSqueeze™ & EZ Squeeze™ Instructions & Warnings
Body Belts & Positioning Straps Instructions
SuperSqueeze™ Serration Grips
Positioning Device with WebGrab™
Carabiner Maintenance
SuperSqueeze™ / EZ Squeeze™ Replacement Parts
Body Belt Sizing Chart
Adjustable Positioning Lanyard Instructions/Warnings
Leverjust Instructions
Lanyard Instructions
Cushion Wrap Pad Instructions
Climber Instructions
Climber Sleeve Insert Installation Instructions
Climber Pad Instructions
Gaff Guard Instructions
Lugless Gaff Instructions
Videos:
SuperSqueeze™ Overview (DOWNLOAD)
SuperSqueeze™ Inspection and Maintenance (DOWNLOAD)
TRAINING - SuperSqueeze™ Video (DOWNLOAD)
The EZ Squeeze Retrofit Kit (DOWNLOAD)
Body Belt Sizing (DOWNLOAD)
